SCX 10 DeadBolt 1/10th Scale Crawler Package

SCX 10 DeadBolt 1/10th Scale Crawler Package

Regular price $449.99 USD
Regular price Sale price $449.99 USD
Sale Sold out

All Show Me Your Hobbies Axial 1/10th scale Crawler Packages come ready to crawl! They include everything you need to start your R/C hobby addiction at an affordable price!

This package includes:

  • 1 x Axial 1/10th scale truck
  • 1 x Spektrum™ DX3™ 3-Channel 2.4GHz DSMR® Transmitter

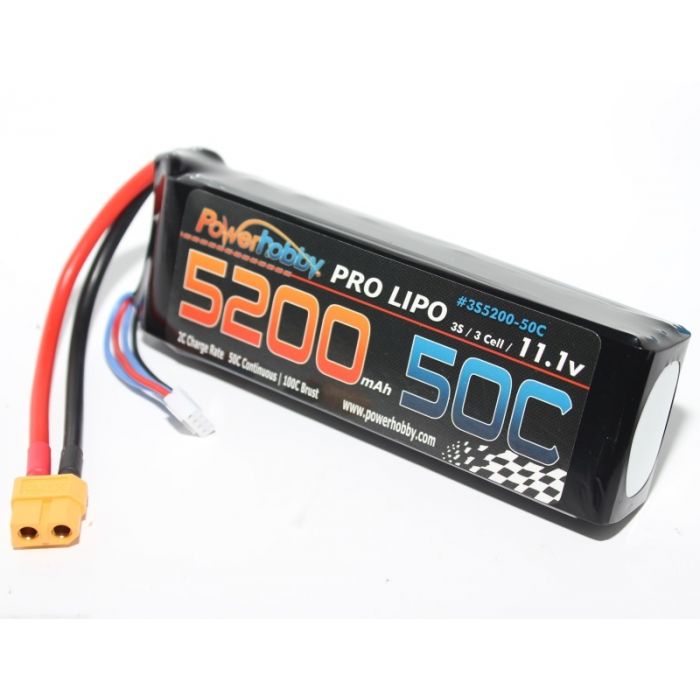

  • 1 x Power Hobby 3S 11.1V 5200mAh 50C Lipo Battery Pack w XT60 Connector / Plug 3-Cell

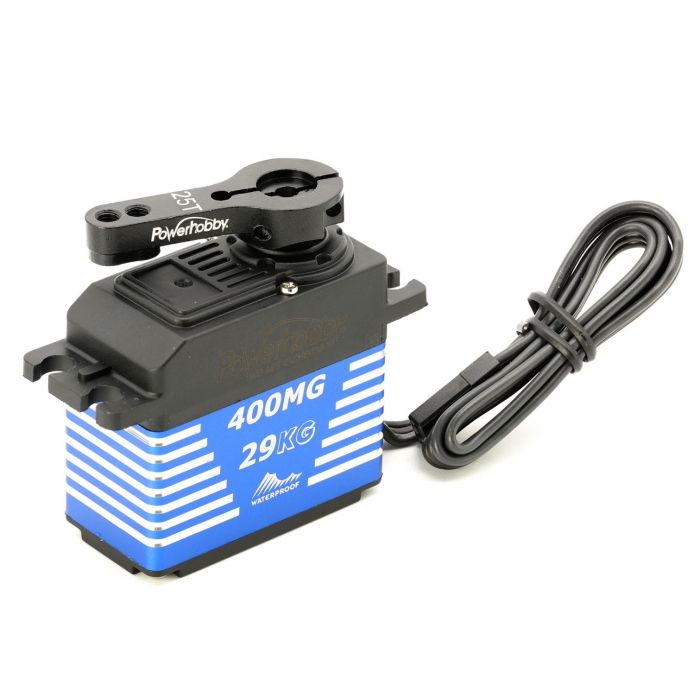

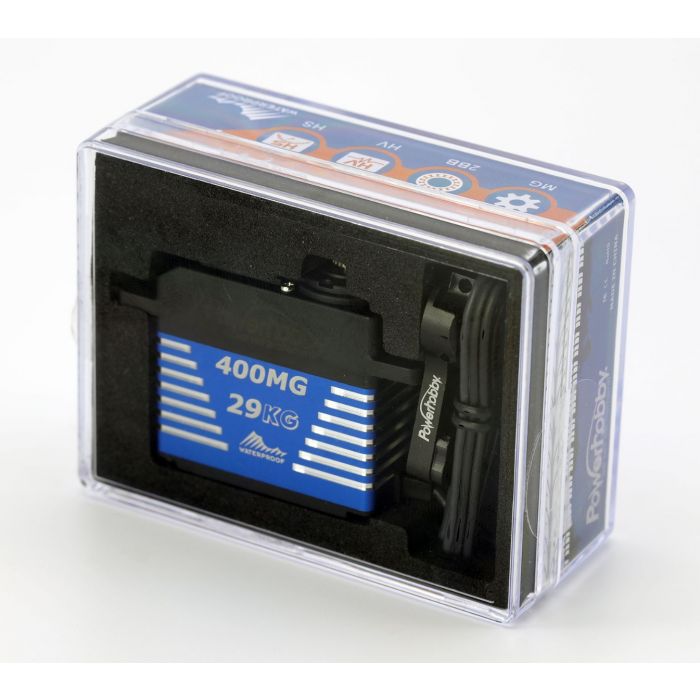

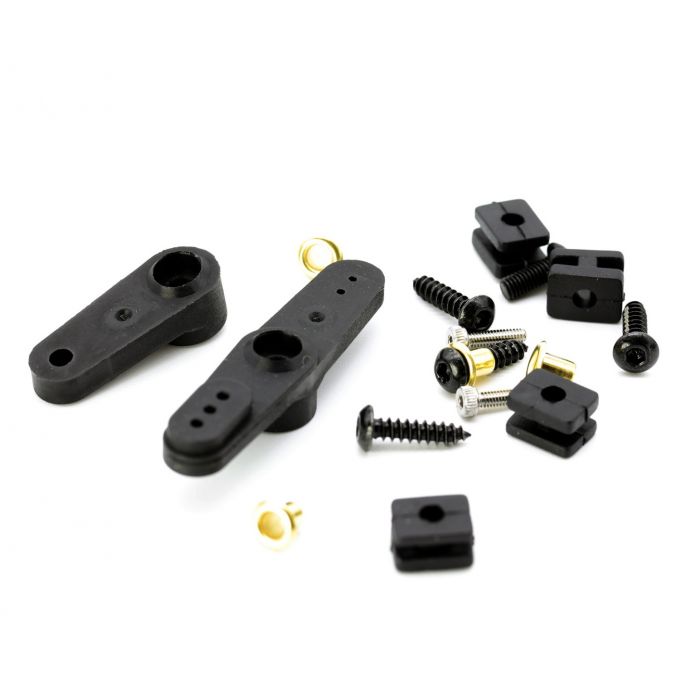

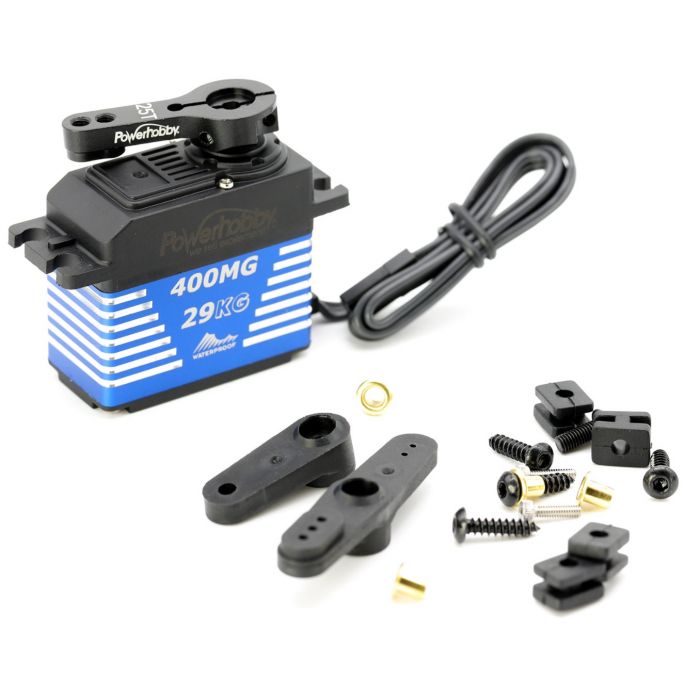

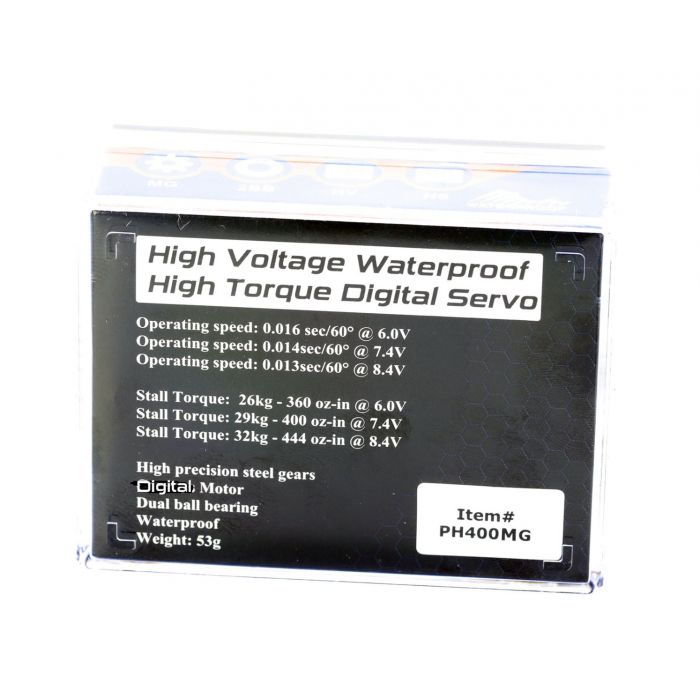

  • Power hobby 400MG Waterproof High Torque Steel Gear 29KG Servo Aluminum Case

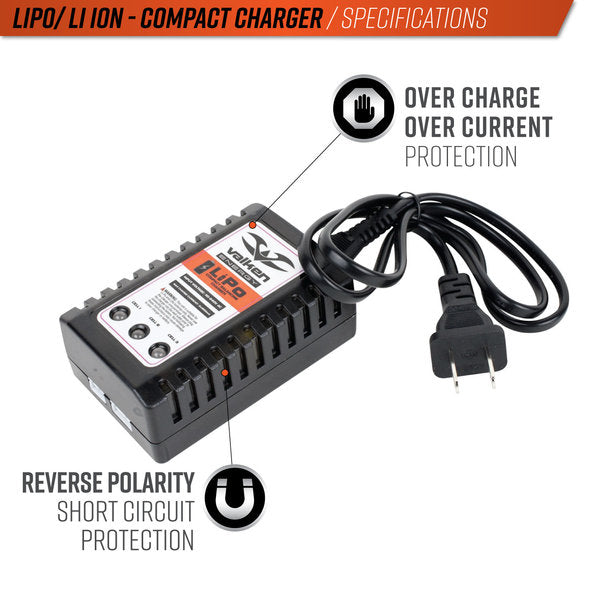

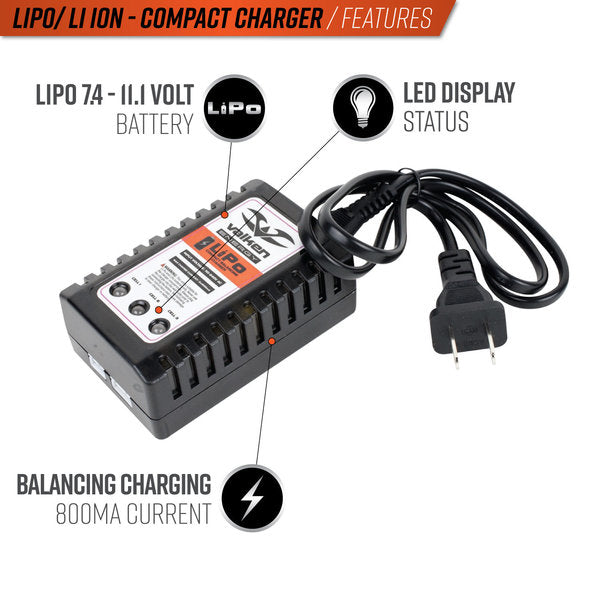

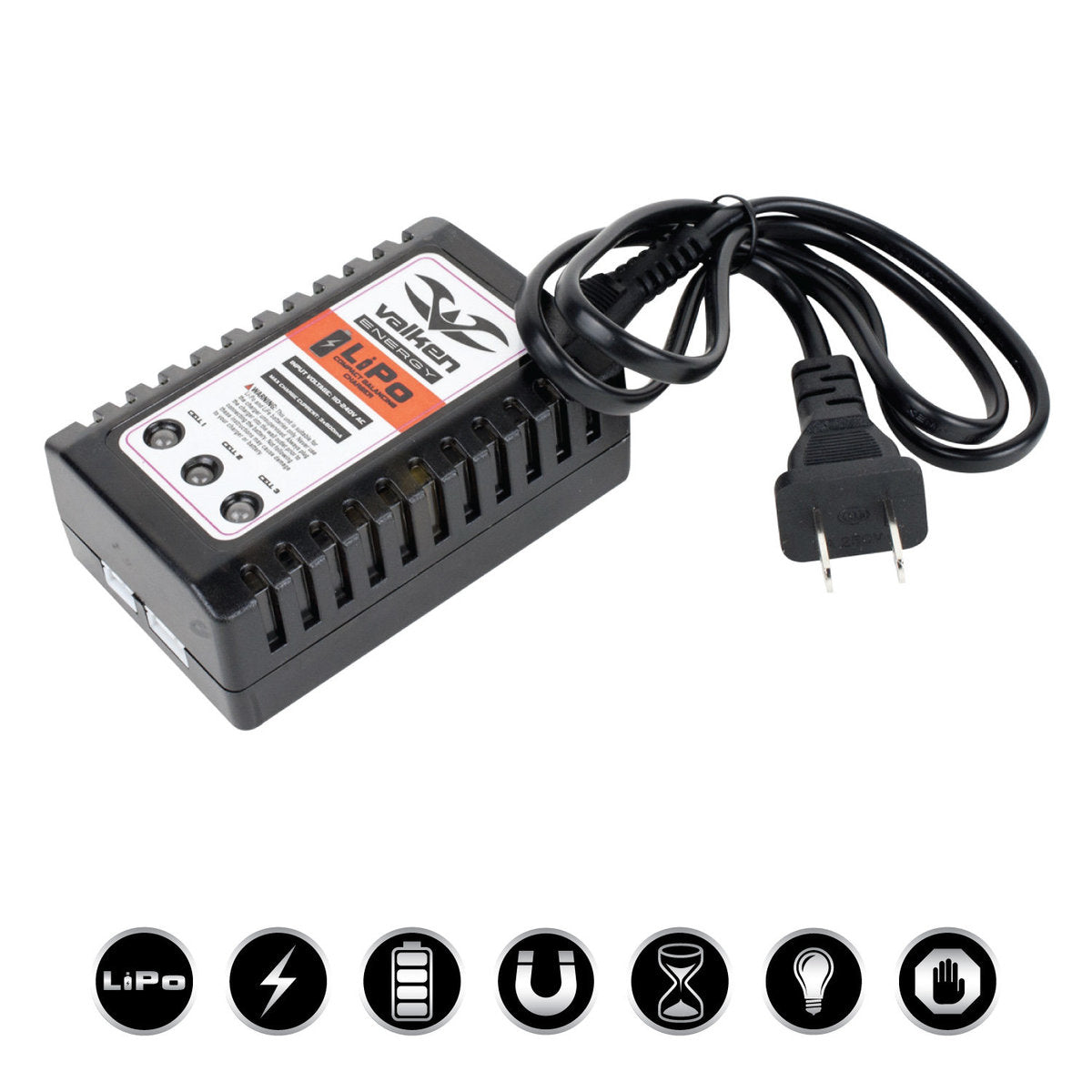

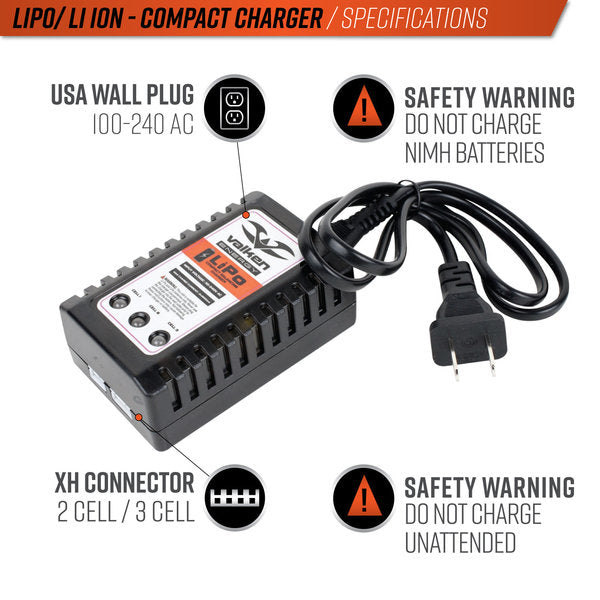

  • Valken 2-3 Cell LiPo Compact Smart Charger

SCX10 Dead Bolt:

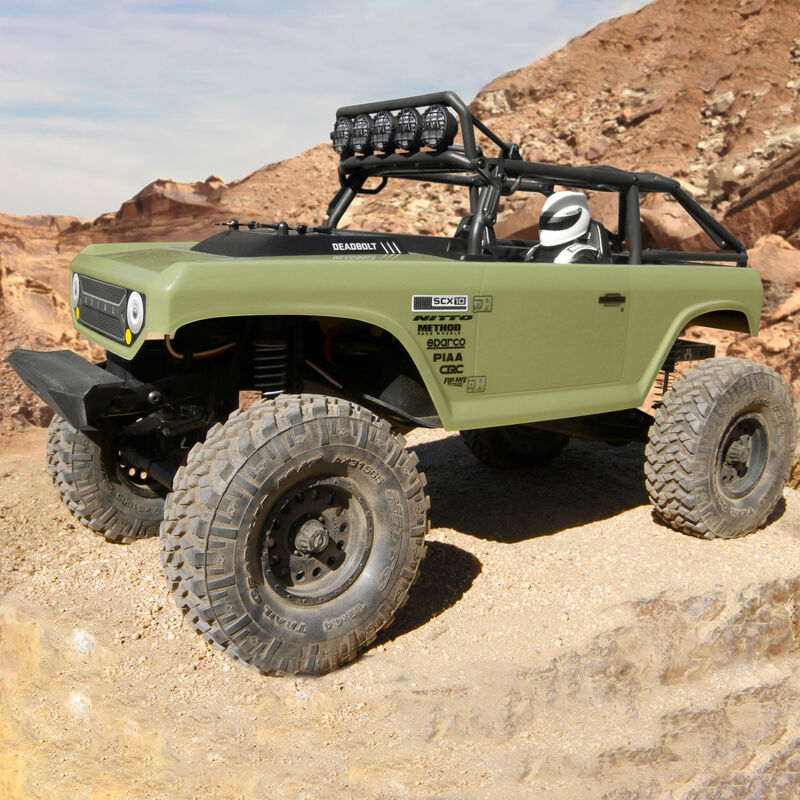

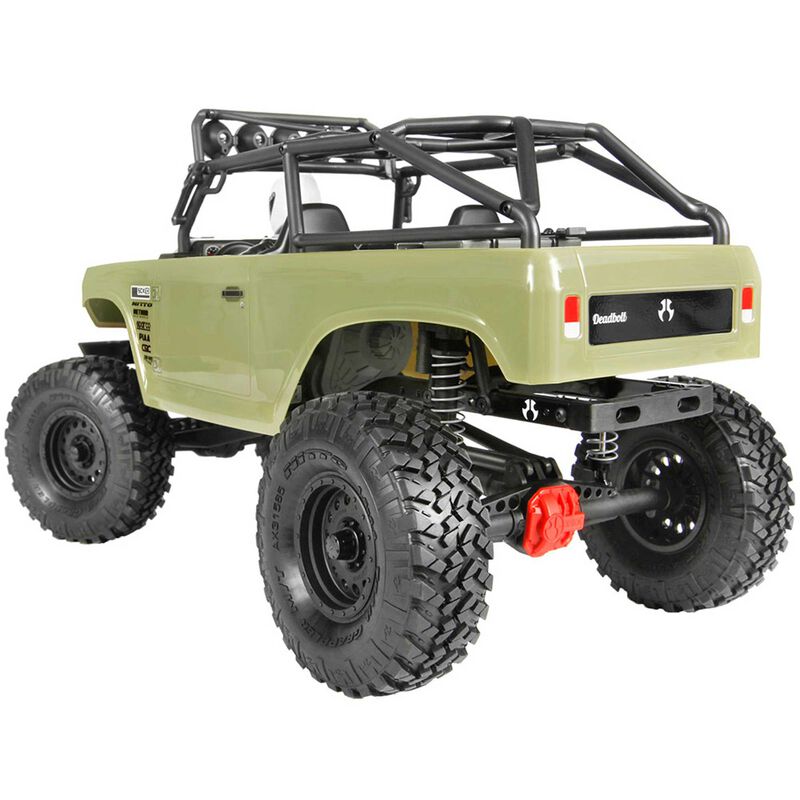

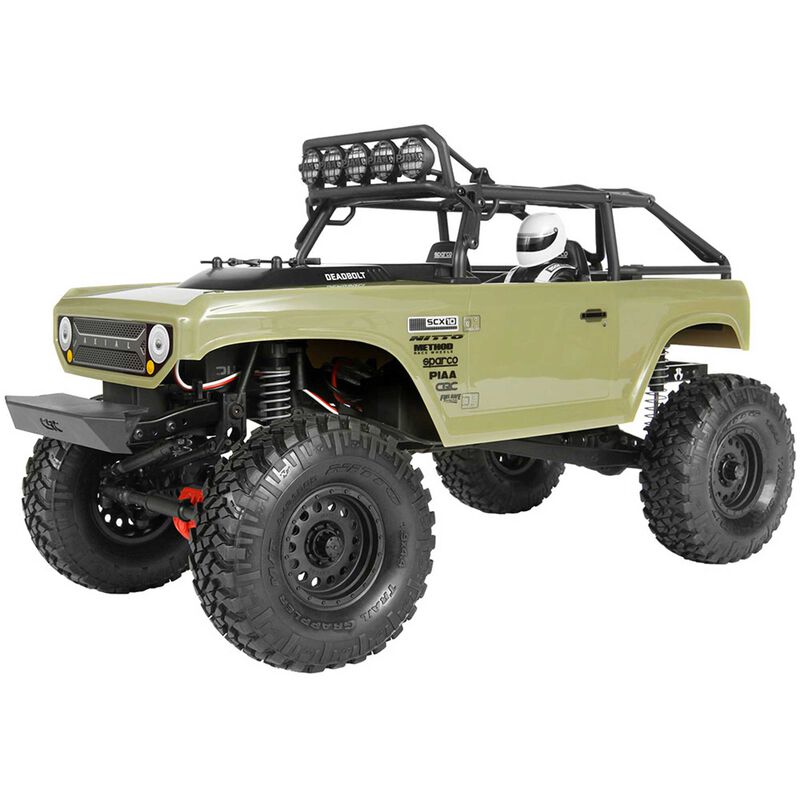

The Axial SCX10 II Deadbolt RTR 4WD Rock Crawler is a highly capable, and easily upgradeable RC rock crawler that's perfectly suited for both experienced adventurers and hobby newcomers. This rock crawler is built on the proven SCX10 II chassis and comes equipped with oil-filled shocks and scale Nitto Trail Grappler tires. By combining both rugged scale looks with exceptional handling performance, this truck is ready to take on twisty, rough terrain.

Using the SCX10 II chassis this chassis features durable steel with cross braces for reinforcement and rigidity. The contoured skid plate significantly reduces hang-ups, and the simplified design makes maintenance quick and easy. The SCX10 II platform also allows for an adjustable wheelbase, adjustable body mounts, adjustable bumper mounts with sway bar mounting points, and mounting points for an optional 2-speed transmission and servo winch (both sold separately). The included LCX AX10 transmission, with a three-gear layout, heavy-duty slipper, sealed gear cover, and all-metal gears, accepts a wide range of gearing options. Its overall ratio can be adjusted using optional pinion and spur gear choices for super high speed or competition-level crawling speed.

Just as a full-size truck has its steering box located on the frame, Axial® places the Deadbolt's adjustable servo mount on the SCX10 II chassis frame and allows a wide range of servos to be used. Universal joint axles permit up to 45° of steering and provide an efficient, high-performance drivetrain. The single-piece AR44 front and rear axles feature a molded truss for extreme durability. The pinion gear is 6mm above the differential pinion centerline for higher ground clearance and improved driveshaft angles. Metal dog bones and helical cut internal gears are standard equipment, and the drivetrain includes full, high-quality ball bearings.


  • Realistic, durable steel C-channel chassis with cross braces for reinforcement and rigidity
  • Single-piece AR44 front and rear axles with molded truss for extreme durability
  • High pinion design that adds ground clearance, improves driveshaft angles, and increases gear surface contact
  • LCX AX10 transmission with adjustable gearing ratio for super high speed or competition-level crawling speed
  • Universal joint axles allow up to 45° of steering and provide an efficient, high-performance drivetrain
  • The optimized gear ratio of 3.75 reduces torque twist
  • Hypoid-cut metal gears
  • Larger load-rated bearings for durability
  • 8° Kingpin axle that eliminates tire scrub
  • 10° Increment adjustments for knuckle carriers and straight axle adapters
  • Chassis mounted servo with adjustable servo mounting system
  • Oil-filled, coil over shocks with threaded shock bodies
  • Licensed CRC front bumper
  • 3-piece WB8 HD Wildboar front and rear driveshafts with a strengthened slider-floater tube to reduce flex and fatigue
  • Easy-access, water-resistant receiver box

Scale: 1/10
Length: 18.1" (460 mm)
Width: 8.8" (224 mm)
Track Width: 7.5 in (190.5mm)
Height: 9" (229 mm)
Ground Clearance: 2.7 in (68mm)
Weight: 4.65lb (2.1 kg)
Gear Pitch: 32P
Pinion: 14T
Spur Gear: 56T
Final Drive Ratio: 40.44:1
Drivetrain: 4WD
Motor Type: Brushed
Motor Size: 540
Water-Resistant: Yes
Connector Type: IC3
Completion Level: Ready-To-Run
